Description
PDM8 Motorsport Keypad & Relay Module
The PDM8 is an extremely user-friendly power distribution module (PDM8) that replaces fuses and relays in a modern way. This kit also includes a weatherproof keypad (KEY8) that replaces buttons and switches.
PDM8 + KEY8 is suitable for everything from Cars, Boats, Machinery, ATVs, Snowmobiles, Jet Skis, Motorhomes, and more, as the buttons and relays are programmable for functions such as turn signals (Pulse/Flash), starter motors, and pumps – but you can easily set it to perform any function you like.
PDM (PDM8):
The PDM8 is a modern and compact programmable relay and fuse box with 6 outputs that completely replaces your old fuse panel. It has a built-in circuit alarm for safety with an indicator on each output. Each output can be individually programmed as On/Off, Momentary, Turn Signals / Hazard Lights, or Pulse / Strobe.

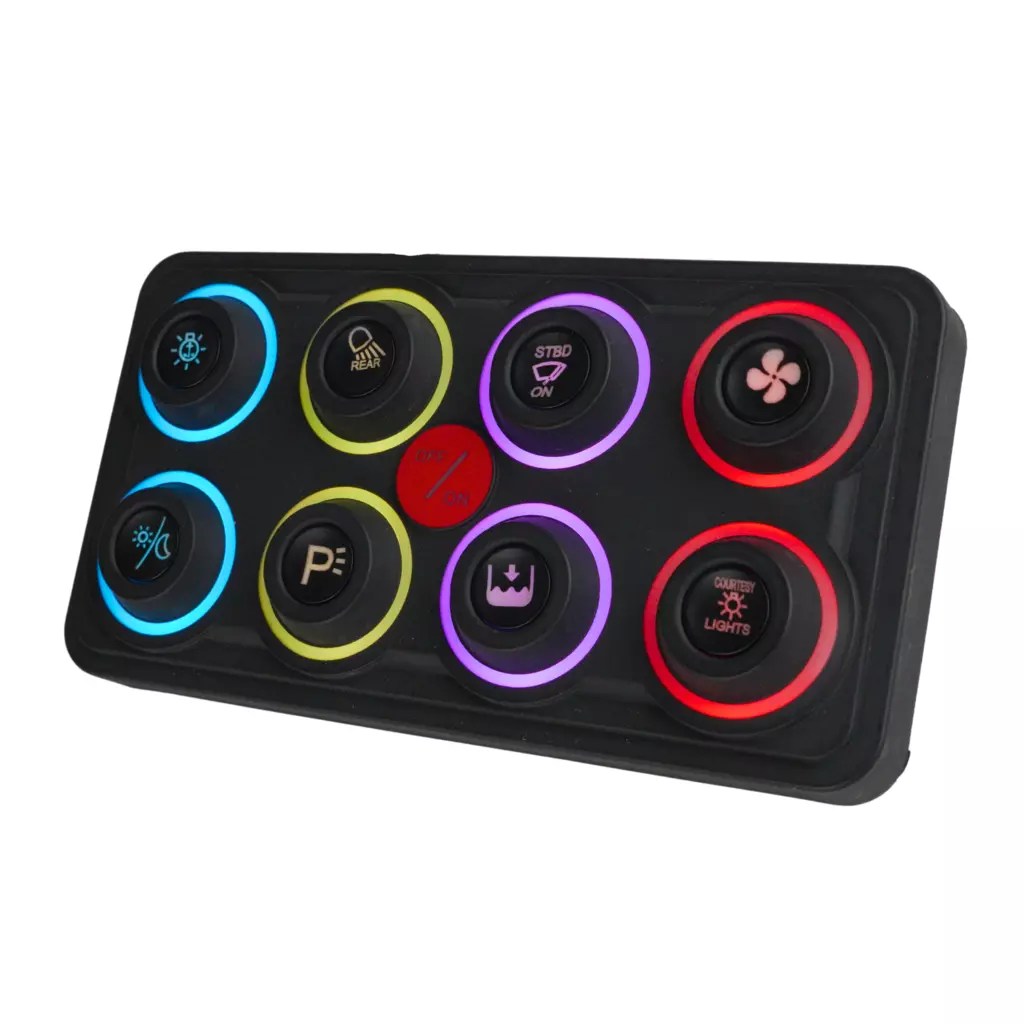

Keypad (KEY8):
The KEY8 is a waterproof programmable CAN keypad that, together with the PDM8, replaces all old buttons and switches in a compact unit. With individually replaceable buttons and colors, the KEY8 is extremely flexible and suitable for all applications.
Functions:
With the PDM8 & KEY8 you can easily control a range of functions such as:
- Fuel pump
- Starter motor
- Cooling fan
- Heater fan
- ECU
- Turn signals / Hazard lights (Note: use an external flasher relay for turn signal function. Relay linked below)
- Lighting
- Wipers
- Water pump
- Boost control
- NOS
- And other functions that you can easily set yourself. The possibilities are endless.
Advantages:
PDM8 + KEY8 is an optimal combination of Price / Performance / Function / Simplicity. You get a modern electrical system with total control that is very easy to install at an extremely attractive price.
- Extremely easy installation (Installation manual included)
- Modern technology for maximum durability
- Everything is easily controlled from the KEY8 keypad
- Affordable price for everyone
Specifications:
- Number of outputs: 8 programmable outputs (2x5A, 2x10A, 2x20A, 2x30A)
- Button colors: Red, Purple, Blue, White, Green, Orange, Yellow
- Communication: CAN (PDM<->keypad)
- Safety: Circuit alarm with indicator on each output
- Voltage: 12/24 Volt (8-32V)
- Max current: 60A
- Shock resistant: YES
- Operating temperature: -40 to +90 degrees
- Rating: IP68 (Dustproof and waterproof)
Included parts:
- 1x Digital fuse box (PDM8)
- 1x Keypad (KEY8)
- 1x Mounting bracket
- 1x 2-meter cable for KEY8
- 1x Red power cable for PDM8 ~63cm
- 1x Red power cable for PDM8 ~28cm
- 1x Black power cable for PDM8 ~63cm
- 1x Circuit breaker
- 1x Set of ~50 icons for KEY8
- 1x Set of screws, nuts, and fuses
- Clear installation instructions
